Description

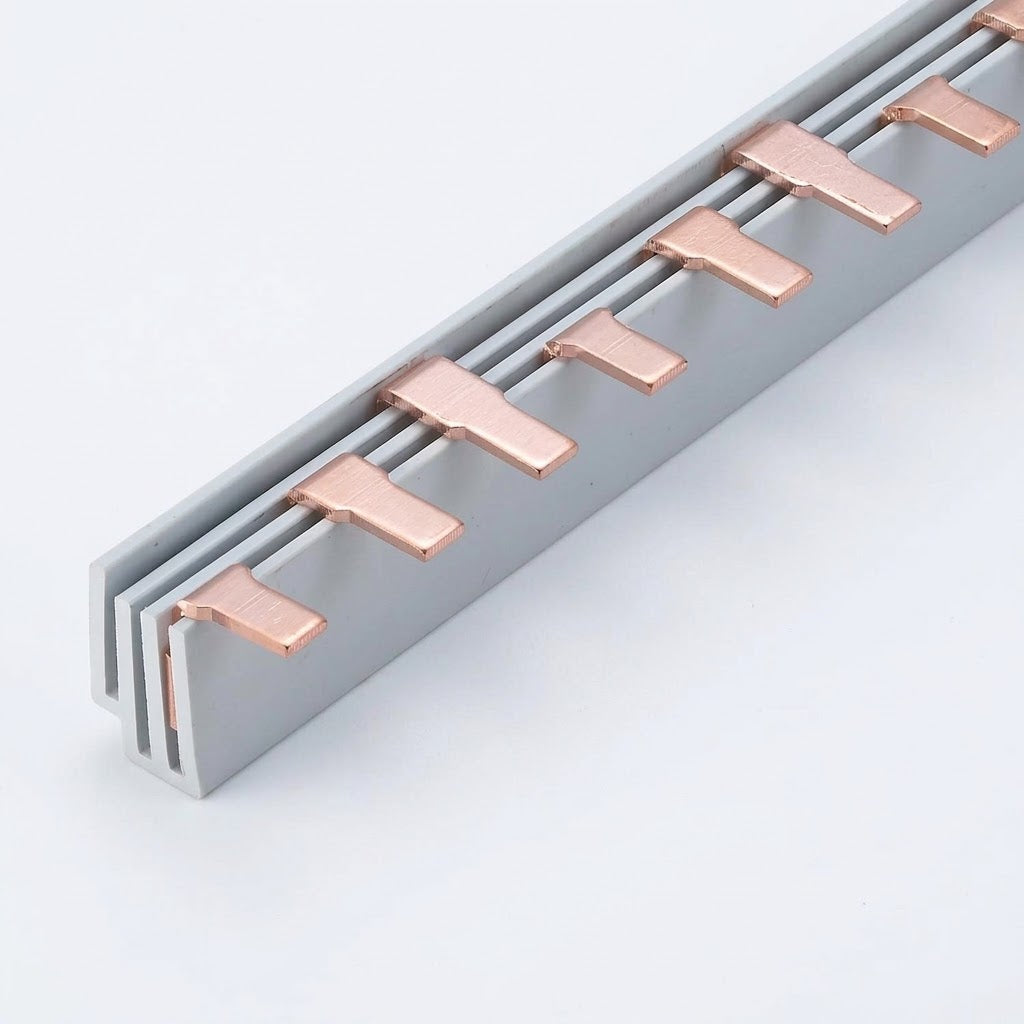

Insulated copper pin busbar for connecting multiple 3-pole (3P) MCBs in three-phase distribution boards and consumer units. One bar replaces messy individual jumper wires, which saves installation time and keeps the panel neat and safe. It is available in 63A and 100A ratings.
Key features
- 3 pole (3P) with staggered pins for three-phase connection
- Copper pins with low resistance and good current carrying
- Available in 63A and 100A ratings
- White PVC insulated cover protects against accidental contact
- Evenly spaced pins that fit standard MCB terminals
- Easy to cut to the number of poles you need
- Suitable for distribution boards, control panels and switchgear
Specifications
- Type: Pin / comb busbar
- Poles: 3 Pole (3P)
- Rated current: 63A / 100A
- Material: Copper conductor, PVC insulation
- Pin pitch: [18mm / 27mm]
- Length: [1 meter]
- Cross-section: [10mm² / 16mm²]
Same-day dispatch on stocked lines across Riyadh, Jeddah and Dammam. Non-stocked and project items are quoted with confirmed lead times.
Request a quote for pricing and lead time.
Need the datasheet for this product? Message us on WhatsApp or email us and we will send it over.
