Description

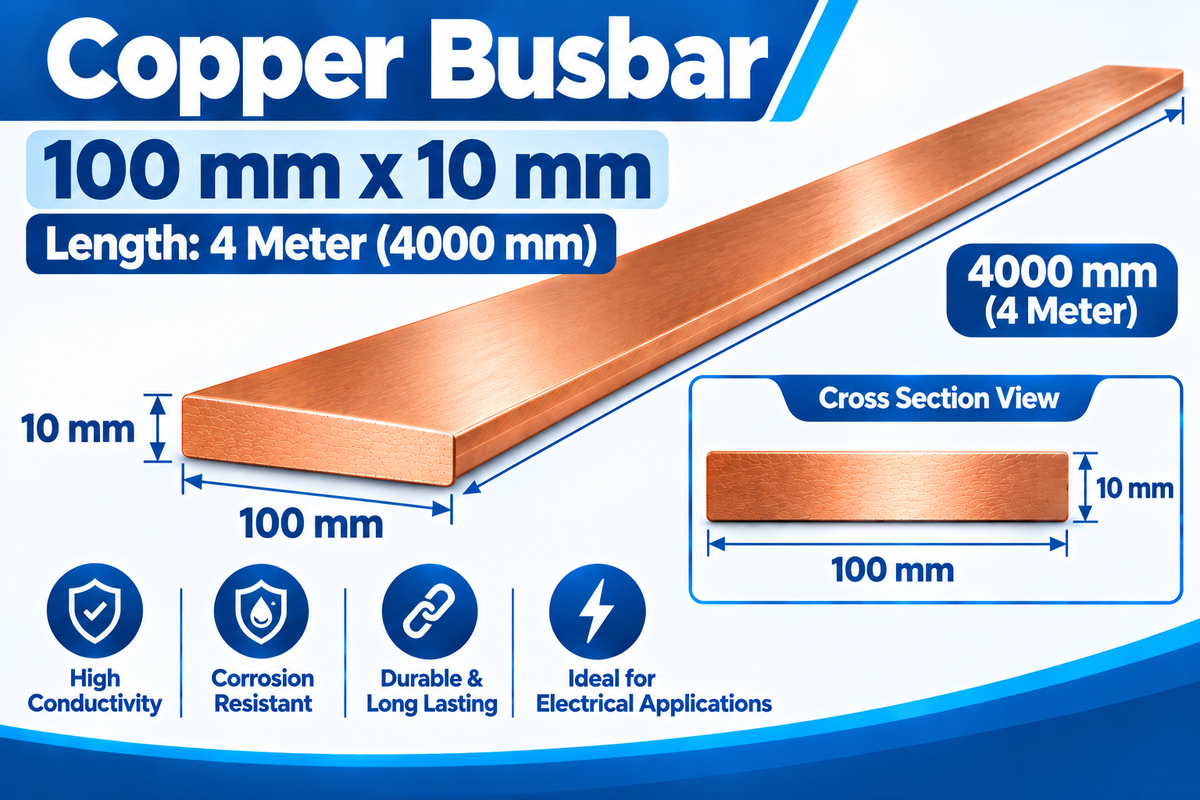

High-quality pure copper flat busbar, sized 100mm × 10mm and supplied in 4-meter lengths, ideal for electrical panels, switchgear, transformers, and power distribution systems. Manufactured with high-conductivity copper for reliable, low-resistance current flow in high-load applications.
Specifications:
- Size: 100mm × 10mm (Width × Thickness)
- Length: 4 Meters (4,000 mm)
- Cross-sectional Area: ~1000 mm²
- Approx. Current Rating: ~1800–2000A (bare copper, still air — actual rating depends on plating, ambient temp, and installation)
- Material: Pure Copper (C11000 / Cu-ETP)
- Finish: Bare / Tin-Plated / Silver-Plated (specify on inquiry)
- Standard: ASTM B187 / BS EN 13601
Same-day dispatch on stocked lines across Riyadh, Jeddah and Dammam. Non-stocked and project items are quoted with confirmed lead times.
Request a quote for pricing and lead time.
Need the datasheet for this product? Message us on WhatsApp or email us and we will send it over.
