Description:

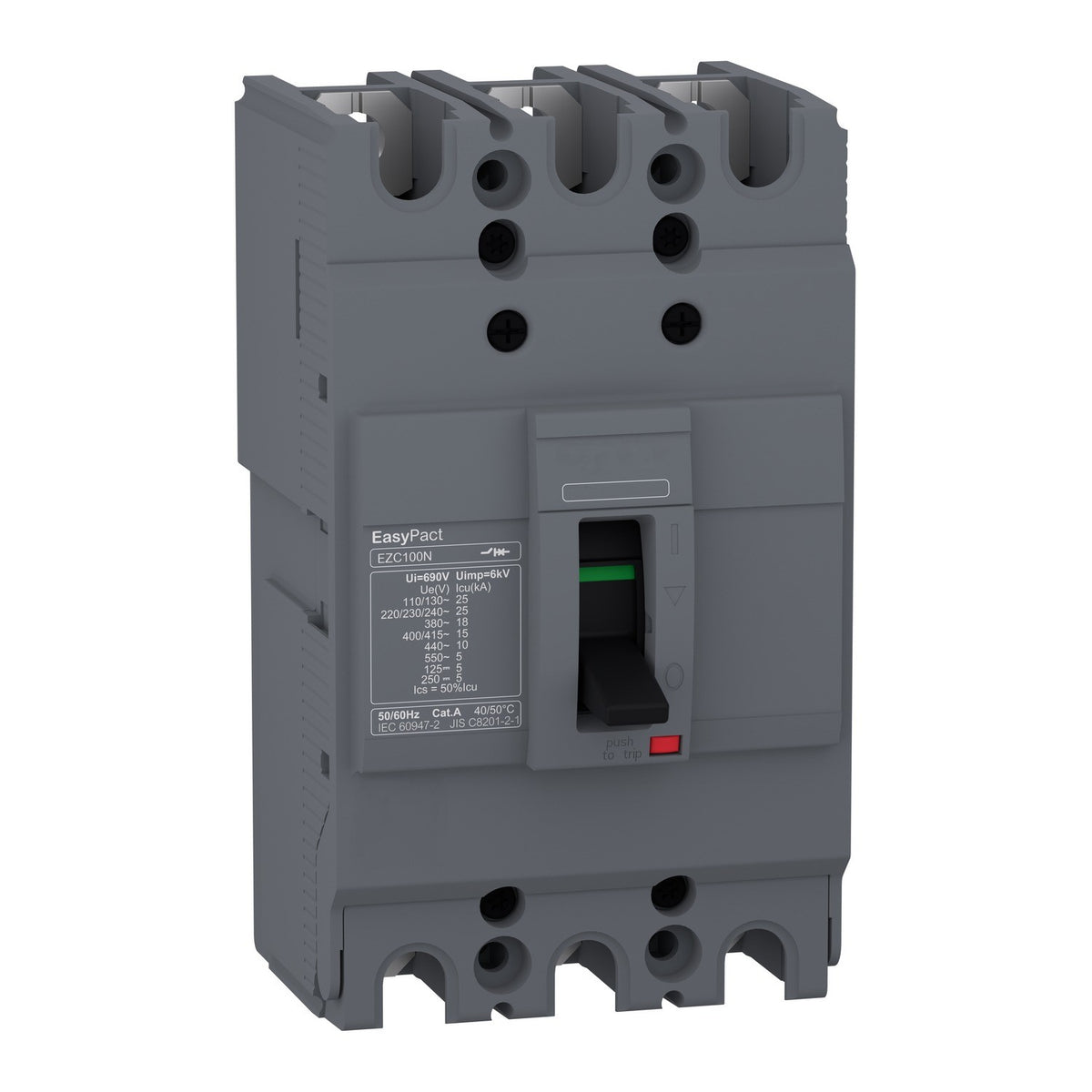

EZC100N3080 80A, 3-pole thermal-magnetic molded case circuit breaker with N-type breaking capacity (15kA). Designed to protect low-voltage electrical installations from overload and short-circuit conditions, it's suited for main distribution protection in industrial facilities and commercial buildings.
Key Features:
- 3-pole, thermal-magnetic (TMD) trip unit, 80A rated
- Breaking capacity: 15 kA at 400–415V AC (18 kA at 380V AC)
- Toggle-type manual control with positive contact indication
- Compact fixed-mount design (130 × 75 × 60 mm)
- Rated for 8,500 mechanical operating cycles
- IEC 60947-2 and UL 508 compliant
Can be used against other brands below :
ABB
Part Number: 1SDA066729R1
Series: Formula A1N 125 TMF
Spec: 80A, 3-Pole, 36kA breaking capacity
Siemens
Part Number: 3VA1180-3EE32-0AA0
Series: SENTRON 3VA1
Spec: 80A, 3-Pole, 25kA breaking capacity
Eaton
Part Number: NZMN1-A80
Series: NZM1
Spec: 80A, 3-Pole, 50kA at 415V AC
Same-day dispatch on stocked lines across Riyadh, Jeddah and Dammam. Non-stocked and project items are quoted with confirmed lead times.
Request a quote for pricing and lead time.
Need the datasheet for this product? Message us on WhatsApp or email us and we will send it over.
Building a panel? Get project pricing fast
Send us your BOQ or parts list on WhatsApp and our team returns a costed quote, with stock checks and lead times.
