Description:

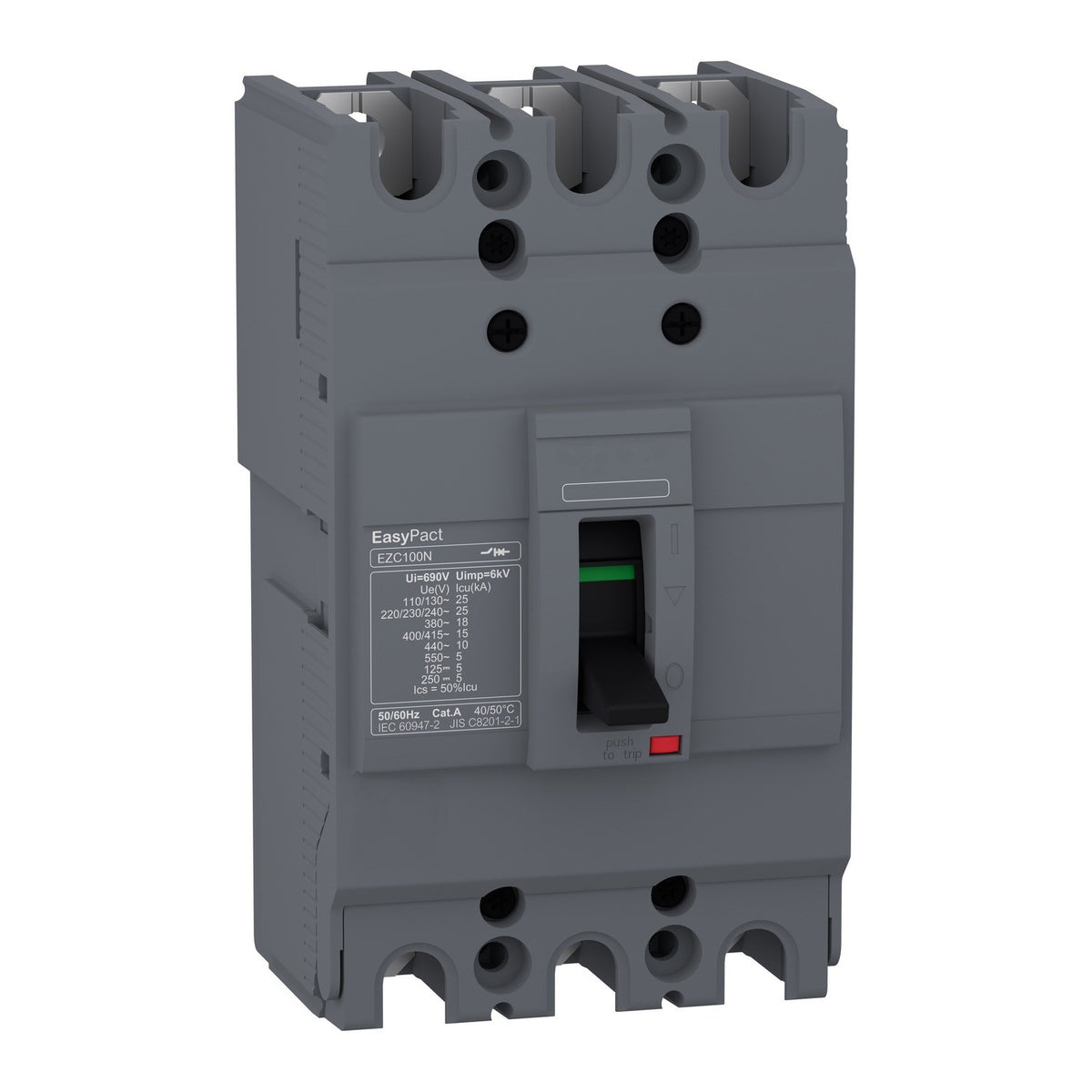

EZC100N3050 50A, 3-pole thermal-magnetic molded case circuit breaker with N-type breaking capacity (15kA). Designed to protect low-voltage electrical installations from overload and short-circuit conditions, it's suited for standard industrial and building applications requiring higher current ratings.
Key Features:
- 3-pole, thermal-magnetic (TMD) trip unit
- Rated current: 50A
- Breaking capacity: 15 kA at 400–415V AC (18 kA at 380V AC)
- Toggle-type manual control
- Compact molded case design (75mm × 130mm × 60mm)
- Rated for 8,500 mechanical operating cycles
- Compliant with IEC 60947-2 and UL 508 standards
can be used against other brands below:
-
Siemens
Part Number: 3VA1150-3EE36-0AA0
Series: SENTRON 3VA1 (160 frame)
Spec: 50A, 3-Pole, 25kA Class N (closest official Siemens class to Schneider's 15kA N-type) -
ABB
Part Number: 1SDA066726R1
Series: Formula A1N 125 TMF
Spec: 50A, 3-Pole, 36kA breaking capacity
