Description

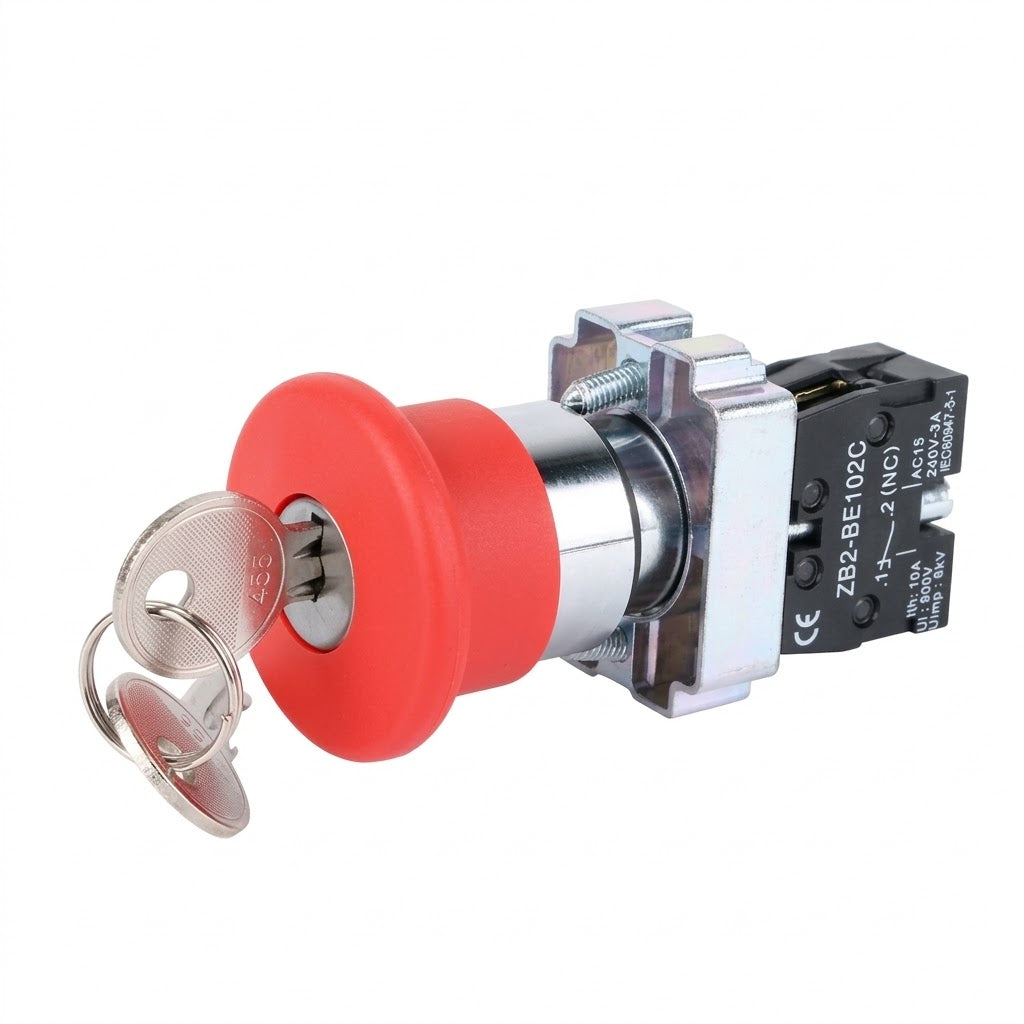

This is a 22mm modular emergency stop / shutdown button with a red 40mm mushroom head, also called EMS (Emergency Machine Stop) or EMO (Emergency Off). It installs in a standard 22mm cut-out and connects with simple screw-clamp connections. The clear color and prominent 40mm mushroom shape make it easy to see from a distance. Pressing the head latches the button down and cuts the circuit. It stays latched until it is unlocked with the key, which stops accidental restarts.
Specifications
- Mounting diameter 22.5mm, round head
- Trigger action with mechanical latching, key release, key no. 455, key withdrawal in the center position
- Contacts: 1 NC, with positive opening per IEC 60947-5-1 appendix K
- Chromium-plated metal bezel, Zamak fixing collar
- Short-circuit protection: 10A gG cartridge fuse; thermal current 10A
- Mechanical durability: 300,000 cycles; tightening torque 0.8 to 1.2 N.m
- Dimensions: 47 x 40 x 104 mm; weight 0.133 kg
Same-day dispatch on stocked lines across Riyadh, Jeddah and Dammam. Non-stocked and project items are quoted with confirmed lead times.
Request a quote for pricing and lead time.
Need the datasheet for this product? Message us on WhatsApp or email us and we will send it over.
